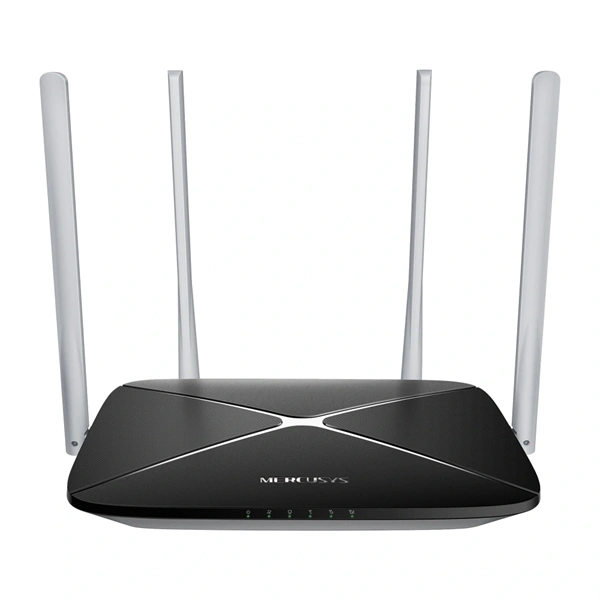

MERCUSYS 3G/4G Modem + Wireless Router AC1200 1xWAN/LAN(100Mbps) +3xLAN(100Mpbs), MB135-4G
Nettó: 19 638 Ft
Beszállítónál
Szállítás: 7 munkanap
Biztonságos fizetés
SSL titkosítás
Ügyfélszolgálat
H-P 8:00 – 16:00
- Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 ΜHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
- Wi-Fi Class
AC1200
- Wi-Fi (2.4 GHz)
300 Mbps
- Wi-Fi ( 5 GHz)
867 Mbps
- Wireless Standards
IEEE 802.11ac/a/b/g/n
- Frequency
5 GHz, 2.4 GHz
- Reception Sensitivity
11g 6Mbps: -95dBm
11g 54Mbps: -77dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71dBm
11a 6Mbps: -92dBm
11a 54Mbps: -75dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65dBm
11ac VHT80 MCS9: -61dBm
- Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
- Wireless Security
WPA-PSK / WPA2-PSK
- Wireless Functions
smart connect
WPS
Wireless Schedule
Wireless Clients Statistics
- Others
- Package Contents
AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
- Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
- Software
- Operation Mode
3G/4G Router
Wireless Router
- Cellular Mode
4G Preferred
4G Only
3G Only
- Cellular APN
Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management
- WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
- NAT Forwarding
ALG
Virtual Server
Port Triggering
UPnP
DMZ
- Protocols
IPv4, IPv6
- Data Settings
Data Statistics
Data Limit
- Parental Controls
Time Control
Website Filtering
- Guest Network
2.4 GHz Guest Network
5 GHz Guest Network
- DHCP
Server
DHCP Client List
Address Reservation
- DDNS
MERCUSYS DDNS
DynDns
NO-IP
- VPN Server
OpenVPN
PPTP
VPN Connections
- SMS
Inbox
New Message
Outbox
Drafts
- QoS
√
- Security
IPv4 SPI Firewall
DoS Protection
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall
- System Settings
Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
SNMP Settings
Traffic Monitor
- Device Management
MERCUSYS APP
Web GUI
- System Language
English
German
Spanish
Greek
French
Italian
Polish
Indonesian
Russian
Thai
- TR-069
√
- Hardware
- Dimensions
219 × 140 × 32 mm
(8.62 × 5.51 × 1.26 in)
- Interfaces
1× 10/100Mbps LAN/WAN Port
3× 10/100Mbps LAN Ports
1× Nano SIM Card Slot
- Antenna
2× External Detachable 4G LTE Antennas,
2× External Wi-Fi Antennas
- Button
WPS/Wi-Fi?Reset Button
- External Power Supply
12V/1A
- LED
1× Power
1× Internet
1× LAN
3× Signal
- Ethernet Ports
1× 10/100 Mbps LAN/WAN Port +
3× 10/100 Mbps LAN Ports
- LTE Standard
Cat 4
150/50Mbps DL/UL
- Wireless
