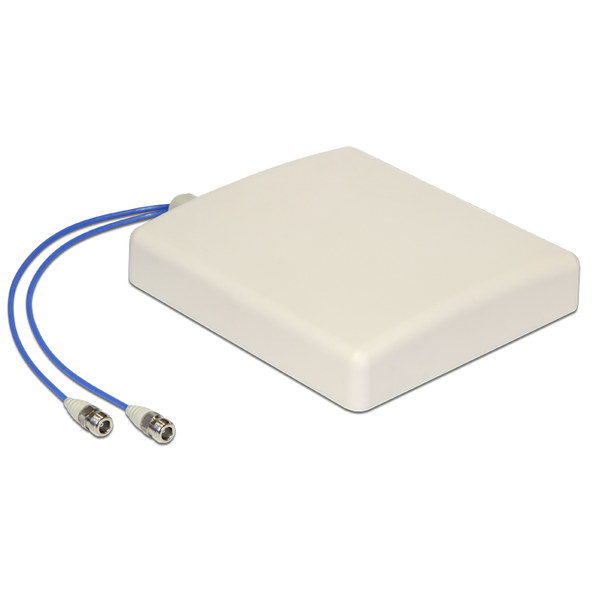

Delock LTE MIMO antenna, N-csatlakozó, sáv:1,3,7,20 , 7dBi (88931)
0.0
0 értékelés
41 600 Ft
Nettó: 32 756 Ft
Beszállítónál
Szállítás: 20 munkanap
Biztonságos fizetés
SSL titkosítás
Ügyfélszolgálat
H-P 8:00 – 16:00
Description
This LTE MIMO antenna can be installed indoors or outdoors and take advantage accordingly bands for LTE. She is completely compatible to UMTS, GSM, Bluetooth and WLAN 2.4 GHz.
Special features
Specification
• Connector: 2 x N jack
• LTE Band 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/23/25
• UMTS / GSM / Bluetooth / WLAN 2.4 GHz
• Gain: 7 dBi
• Horizontal Beamwidth: 75°
• Vertical Beamwidth: 65°
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSWR: 1.5 max.
• Cable type: RG141
• Cable length: ca. 30 cm
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Protection class: IP 55
• Including wall/pole mounting kit
• Weight: 0.9 kg
• Dimension: ca. 237.5 x 229.5 x 50.0 mm
Package content
• LTE MIMO antenna
Package
• White Box
This LTE MIMO antenna can be installed indoors or outdoors and take advantage accordingly bands for LTE. She is completely compatible to UMTS, GSM, Bluetooth and WLAN 2.4 GHz.
Special features
| LTE Band: | 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/23/20/25 | |
| Frequency range: | 698 ~ 960 MHz + 1710 ~2700 MHz | |
| Gain: | 7 dBi |
Specification
• Connector: 2 x N jack
• LTE Band 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/23/25
• UMTS / GSM / Bluetooth / WLAN 2.4 GHz
• Gain: 7 dBi
• Horizontal Beamwidth: 75°
• Vertical Beamwidth: 65°
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSWR: 1.5 max.
• Cable type: RG141
• Cable length: ca. 30 cm
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Protection class: IP 55
• Including wall/pole mounting kit
• Weight: 0.9 kg
• Dimension: ca. 237.5 x 229.5 x 50.0 mm
Package content
• LTE MIMO antenna
Package
• White Box
