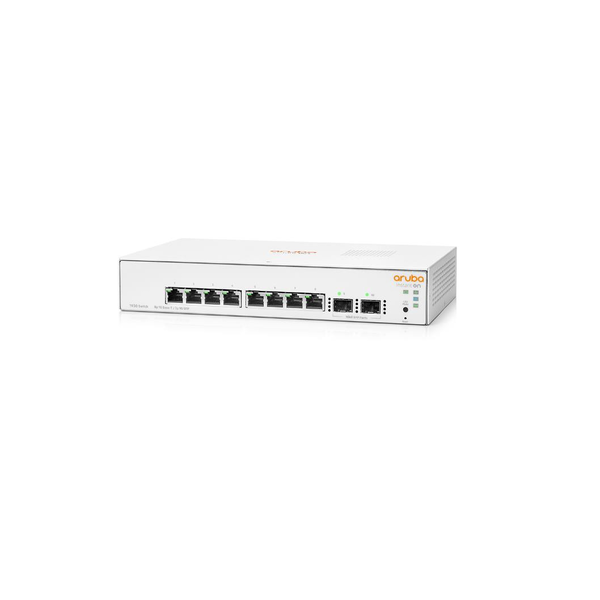

HP Aruba Instant On 1930 8G Gigabit Switch

Aruba  Instant  On 1930 8G 2SFP Switch (JL680A)

I/O Ports and Slots

8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX:  half or full; 1000BASE-T: full only

2 SFP 1GbE ports

Physical Characteristics

Dimensions

10(w) x 6.28(d) x 1.73(h) in

(25.4 x 15.95 x 4.39 cm)

(1U height)

Weight

2.55 lb (0.82 kg)

CPU

ARM Cortex-A9 @ 800 MHz

Memory And Flash

512 MB SDRAM

256 MB flash

Packet Buffer

1.5 MB

Performance

100 Mb latency

< 5.2 uSec

Packet size

64B

1000 Mb latency

<3.0 uSec

Packet size

64B

10000 Mb latency

n/a

Packet size

n/a

Throughput (Mpps)

14.88 Mpps

Packet size

64B

Switching capacity

20 Gbps

Routing table size (# of static entries)

32

MAC address table size (# of entries)

8,000

Reliability MTBF (years)

178

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Non-operating temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating relative humidity

15% to 95% @ 140°F (60°C)

Altitude

Up to 10,000ft (3.048 Km)

Acoustic

Power: 0 dB (no fan)

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

100-240V

Current

0.2 A

Maximum power rating

11.0 W

Idle power

6.2 W

PoE power

n/a

Power supply

External power adapter (included)

Safety

UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

Immunity

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 / EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

Device  Management

Aruba Instant On solution; Web browser; SNMP Manager
