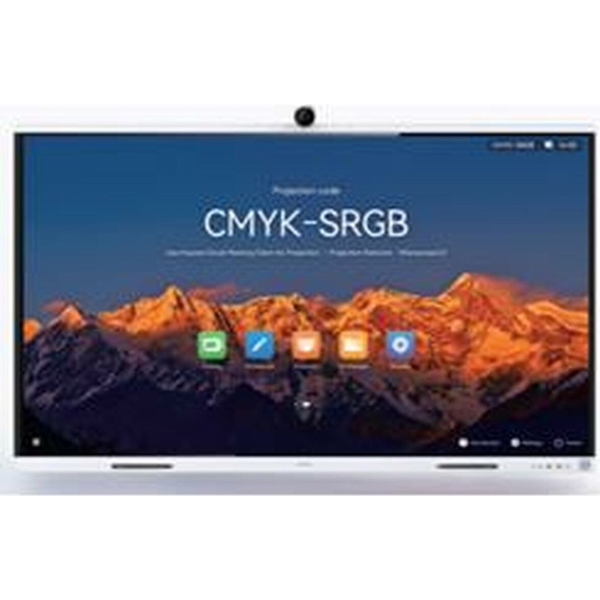

Huawei eKit IdeaHub S2 IHS2-65SA 65" touchscreen LED smart interaktív tábla fehér-fekete
Kategória: Monitor
Gyártó: Huawei
Cikkszám: M0311974
Kategória: Monitor
Gyártó: Huawei
Cikkszám: M0311974
| Product Name | HUAWEI IdeaHub S2 |
| Product model | 65": IHS2-65SA |
| Product dimensions(H x W x D) | 65": 947.5 mm x 1484.5 mm x 91.6 mm |
| Net weight | 65": 35.5 kg |
| Gross weight (including the package) | 65": 43.0 kg |
| * | The dimensions and weight may vary with configuration, manufacturing process, and measurement method. The product height includes the camera (55 mm). |
| Device | 1 |
| Stylus pens | 2 |
| Cable | Power cable x 1 |
| Wall-mounted bracket | Optional (65", 75", and 86") |
| Rolling stand | Optional (65", 75", and 86") |
| IdeaShare Key | Optional (Type-A/Type-C port) |
| OPS | Optional |
| Resolution | 4K (3840 x 2160 pixels) |
| Backlight type | D-LED |
| Screen Lamination | Zero-gap bonding |
| Latency | 16 ms |
| Touch sensing distance | ? 1.5 mm |
| Intelligent writing recognition | Supports recognition of Chinese, English, French, Japanese, Spanish, Russian, Portuguese, Italian and 11 types of graphics |
| Resolution | 4K |
| Camera sharpness | 1800 lines |
| Lens cap for privacy protection | ? |
| Horizontal FoV | 80° |
| TV distortion | <2% |
| Speaker frequency domain | 100 Hz to 20 kHz |
| Number of speaker units | 4 |
| Speaker total power | 40 W |
| Sound pickup angle | 180° |
| Sound pickup distance | 12 m |
| Microphone frequency domain | 80 Hz to 20 kHz |
| Optimized sound pickup | Sound location, echo cancellation, and automatic gain control |
| Native meeting apps | Huawei Cloud Meeting and WeLink |
| Dual streams (audio/video + data sharing) | 1080p30fps+1080p30fps/4K8fps |
| BYOM | ? |
| Auto-Framing | ? |
| Intelligent tracking | ? |
| Acoustic baffle | ? |
| DNN-based dereverberation | ? |
| CPU | 8-core |
| RAM | 8 GB |
| Flash | 64 GB |
| OS | HarmonyOS, Windows (OPS required) |
| Security | Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE |
| Language | Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, German, Portuguese, and Italian |
| Wi-Fi module | Wi-Fi 6 |
| Wi-Fi frequency | 2.4 GHz + 5 GHz |
| NFC | ? |
| Video input | HDMI cable x 1 |
| Video output | HDMI cable x 1 |
| Audio input | ·3.5 mm (line-in) x 1 ·HD-AI x 1 |
| Audio output | 3.5 mm (line-out) x 1 |
| Other ports | ·USB Type-A 3.0 x 3 ·USB Type-C x 1 ·RJ45 (10/100/1000 Mbit/s LAN) x 1 |
